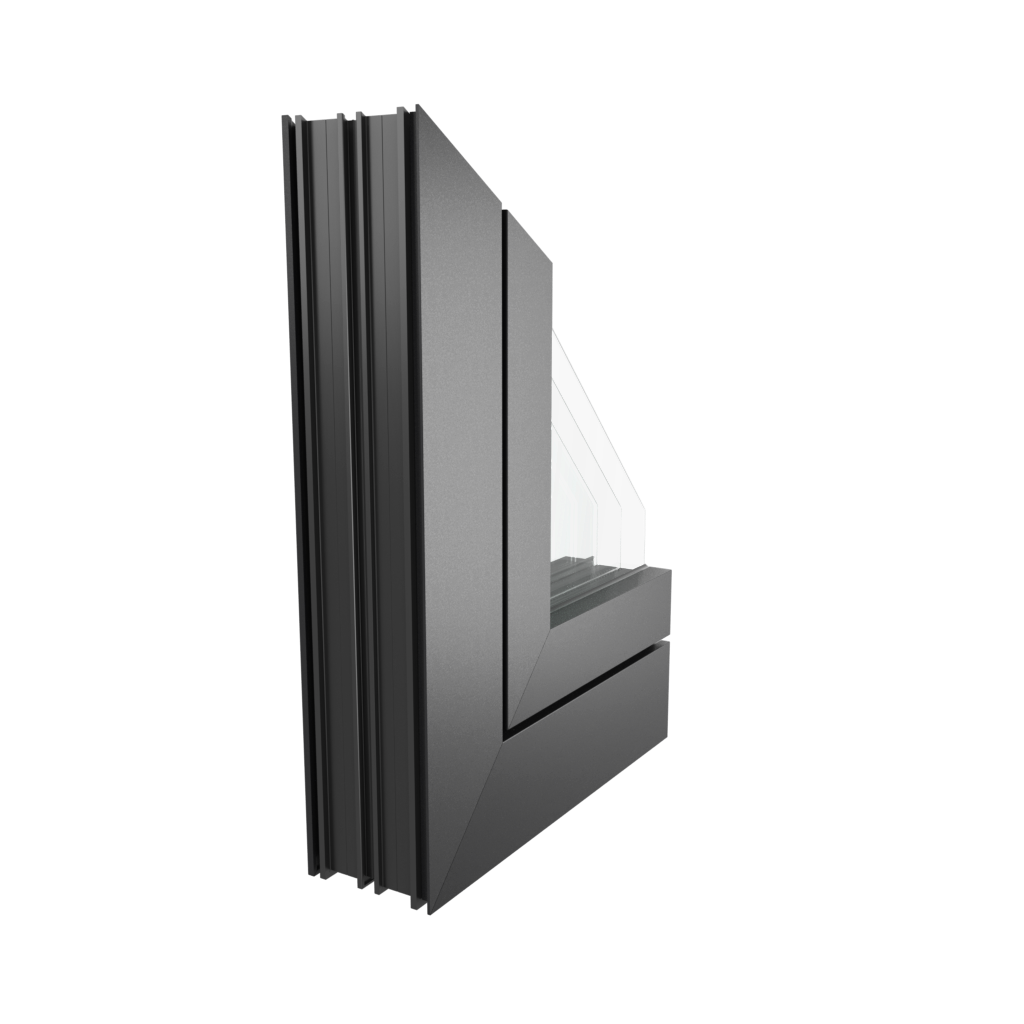

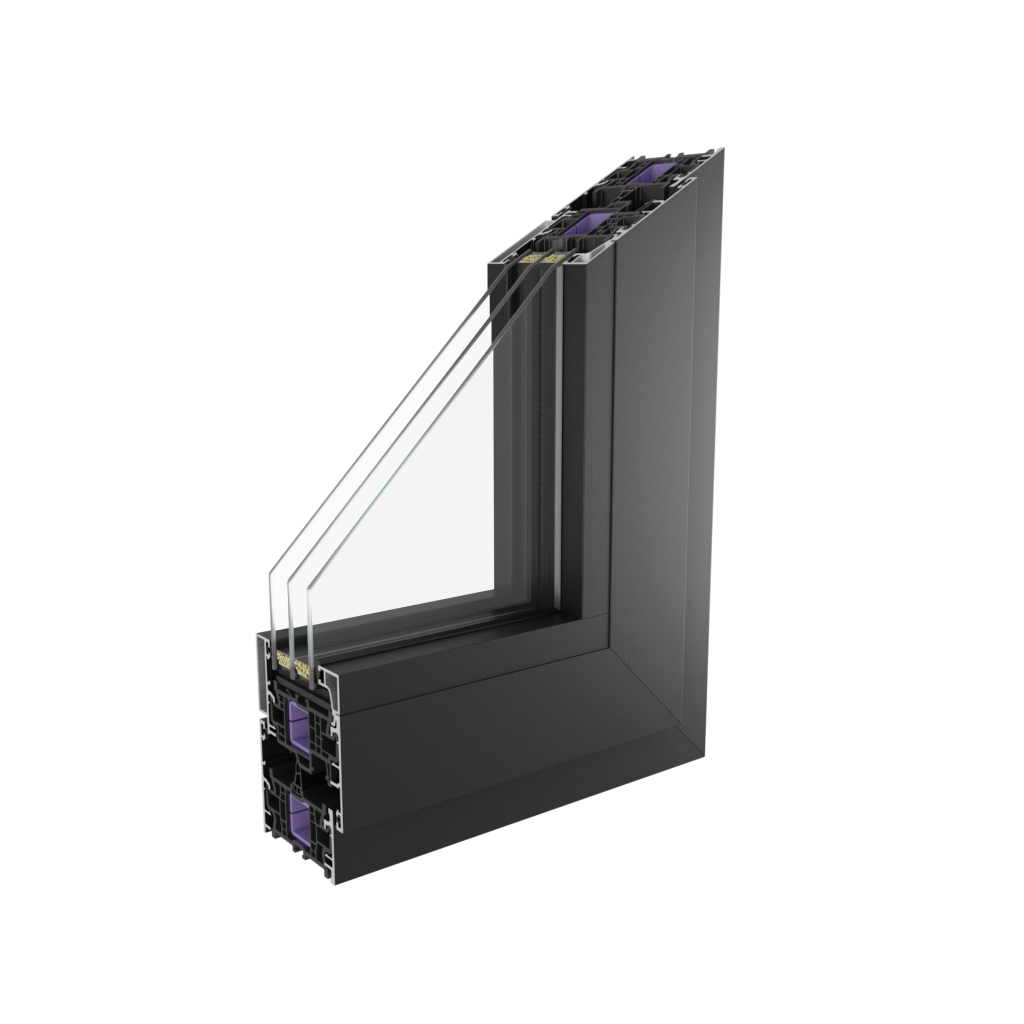

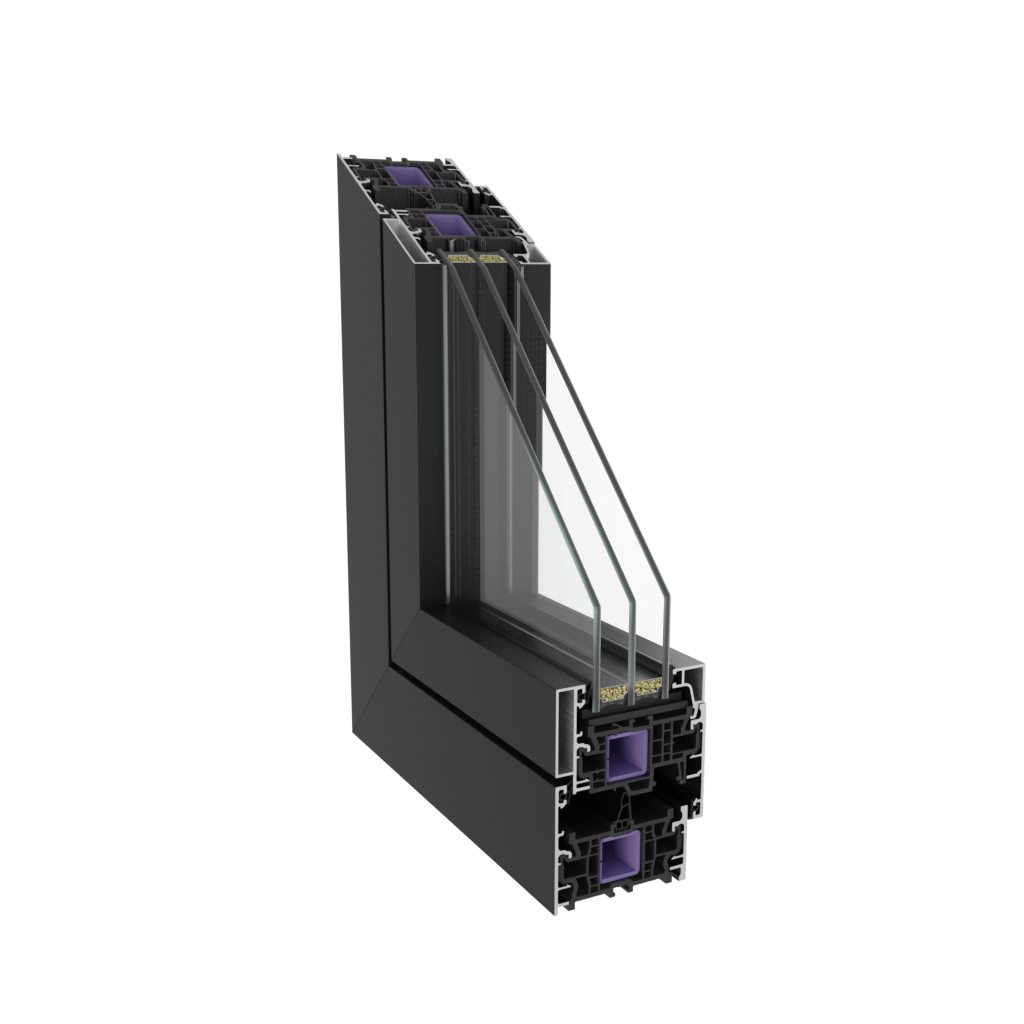

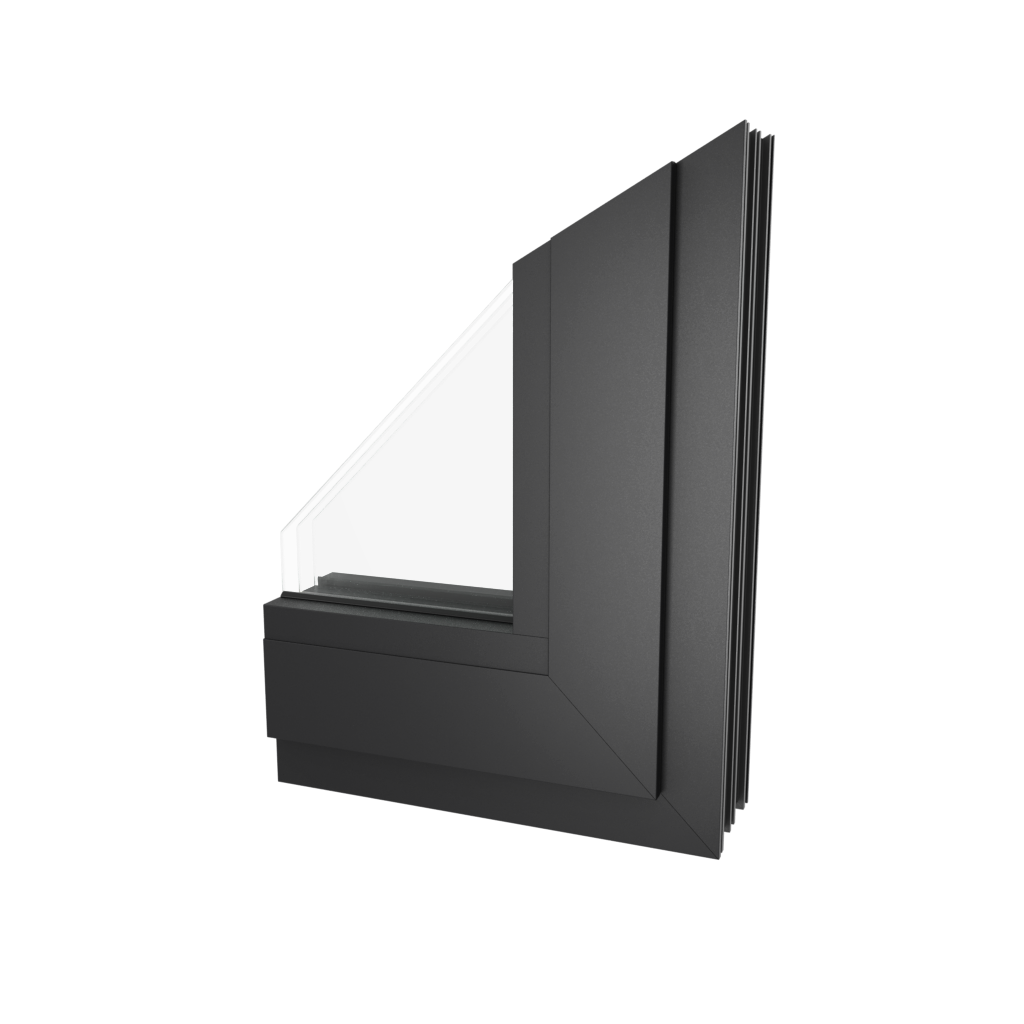

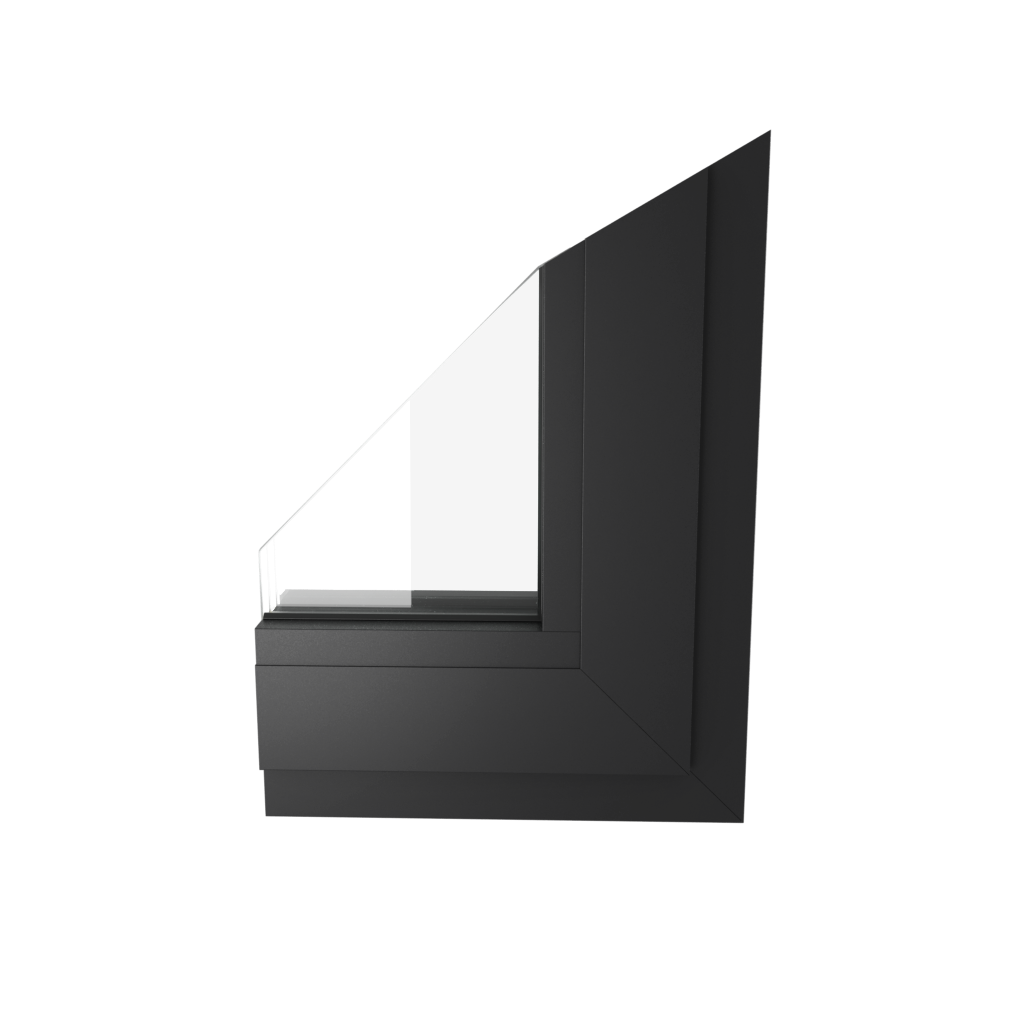

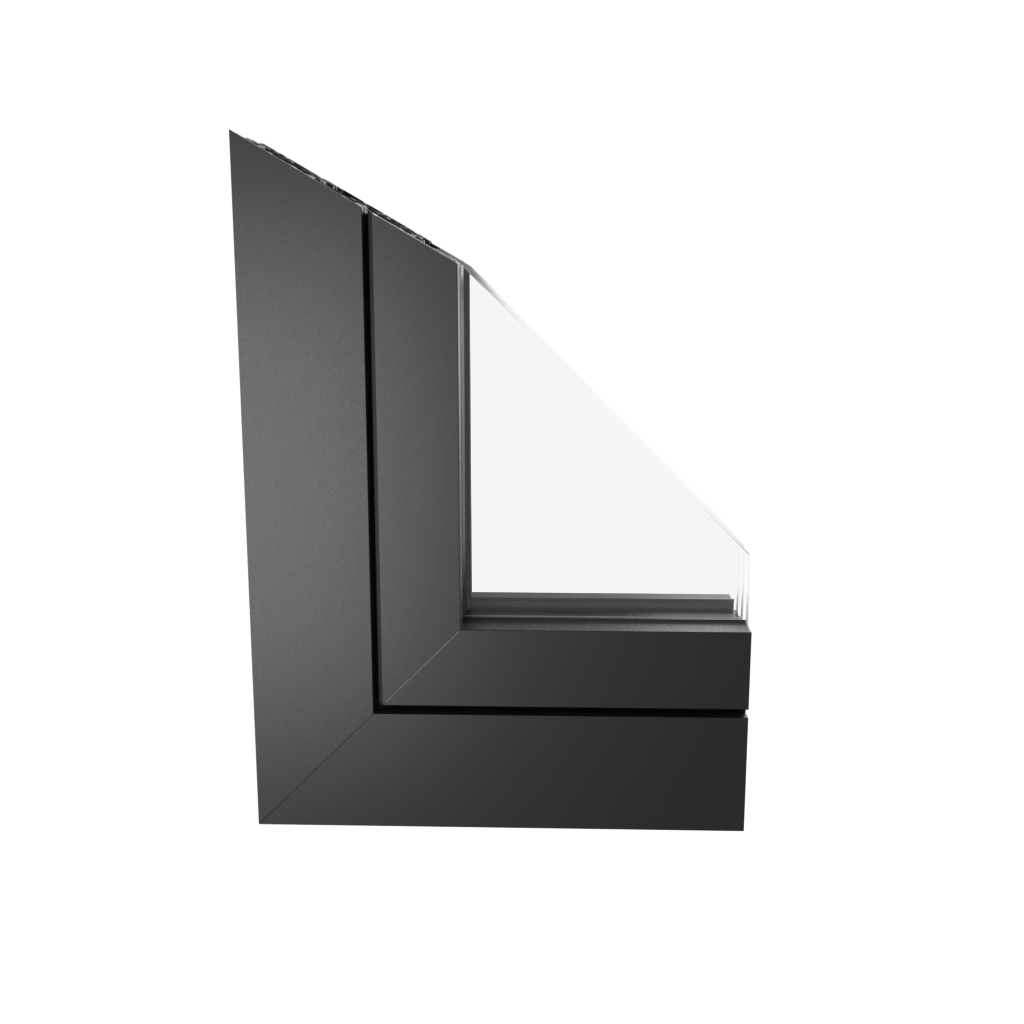

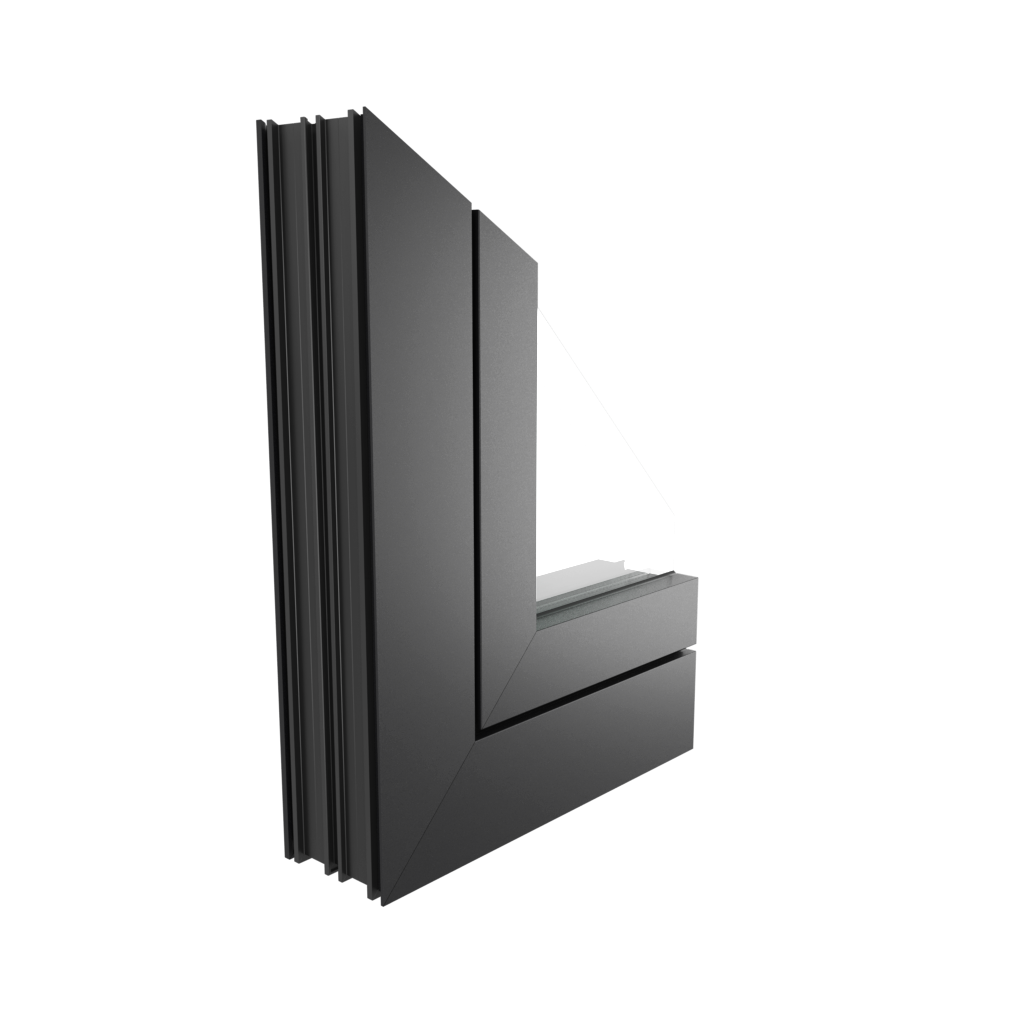

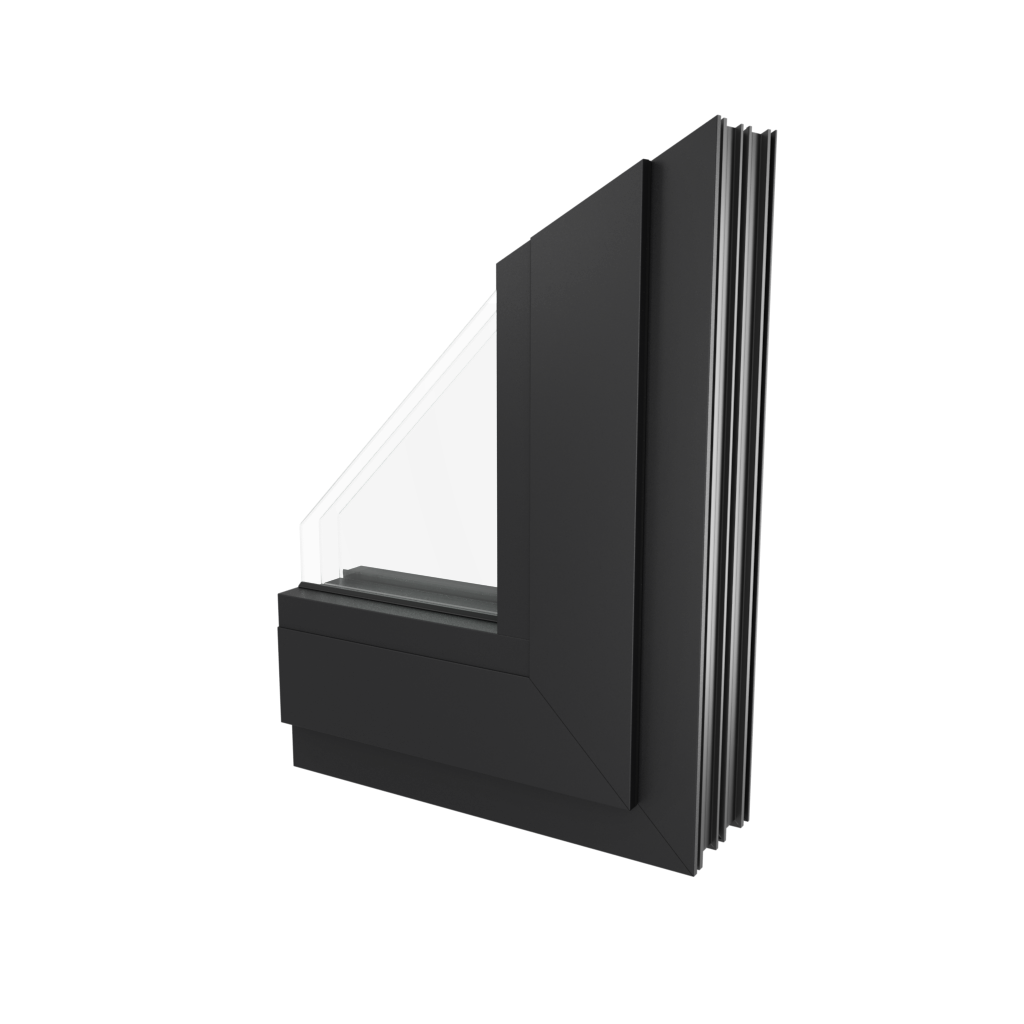

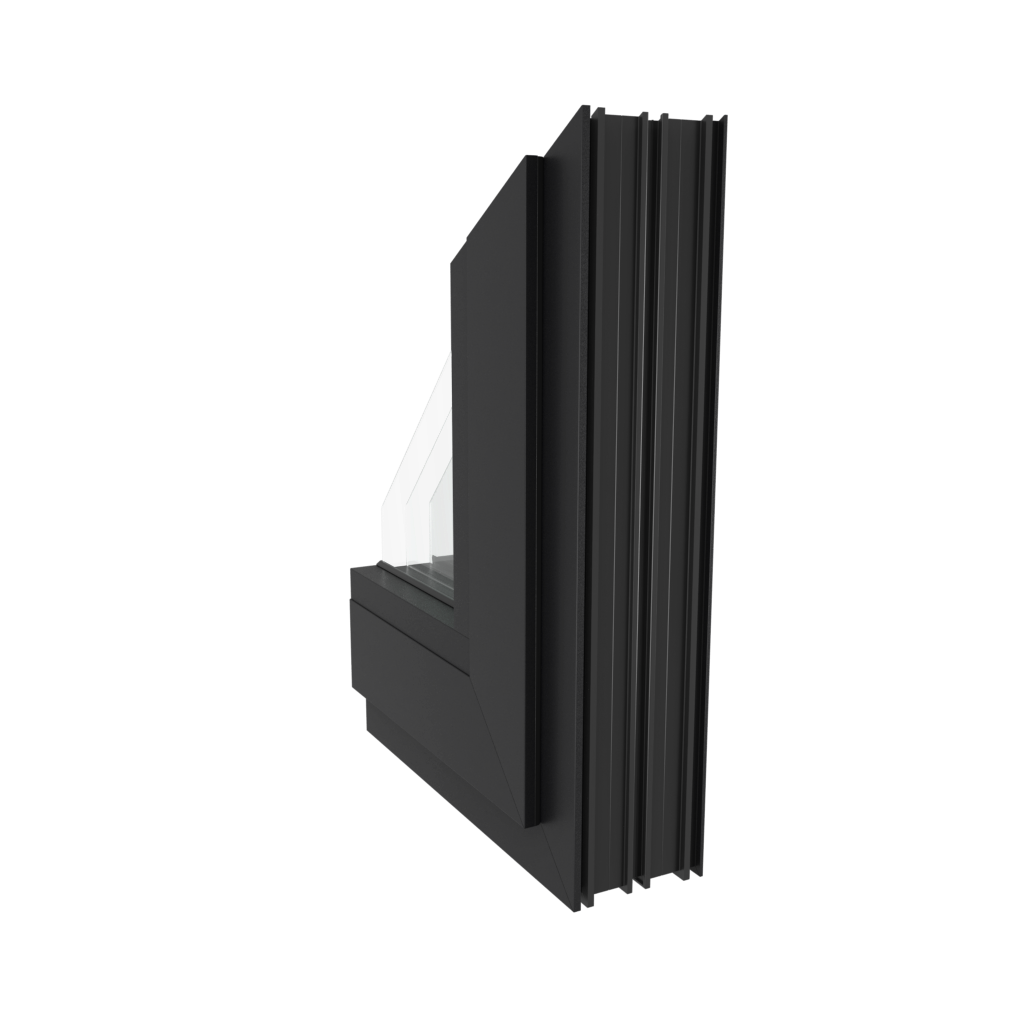

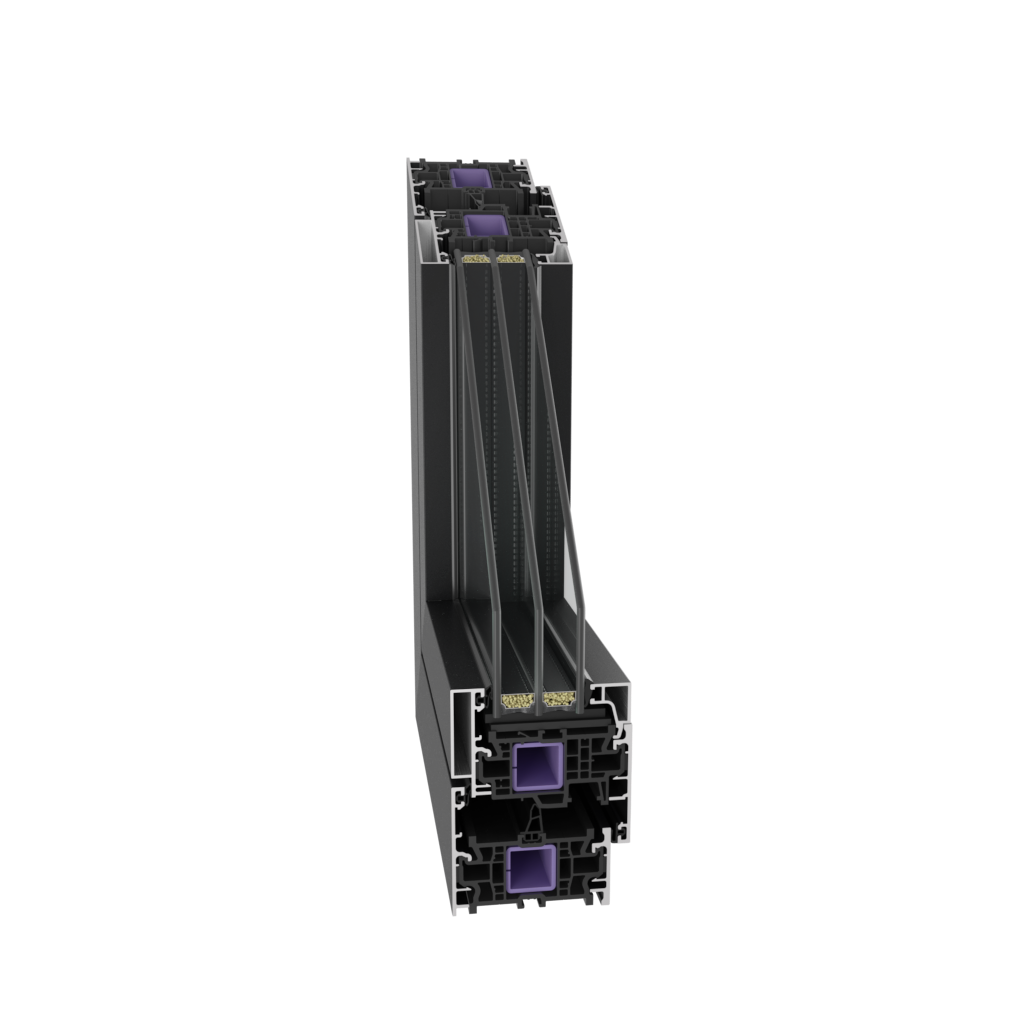

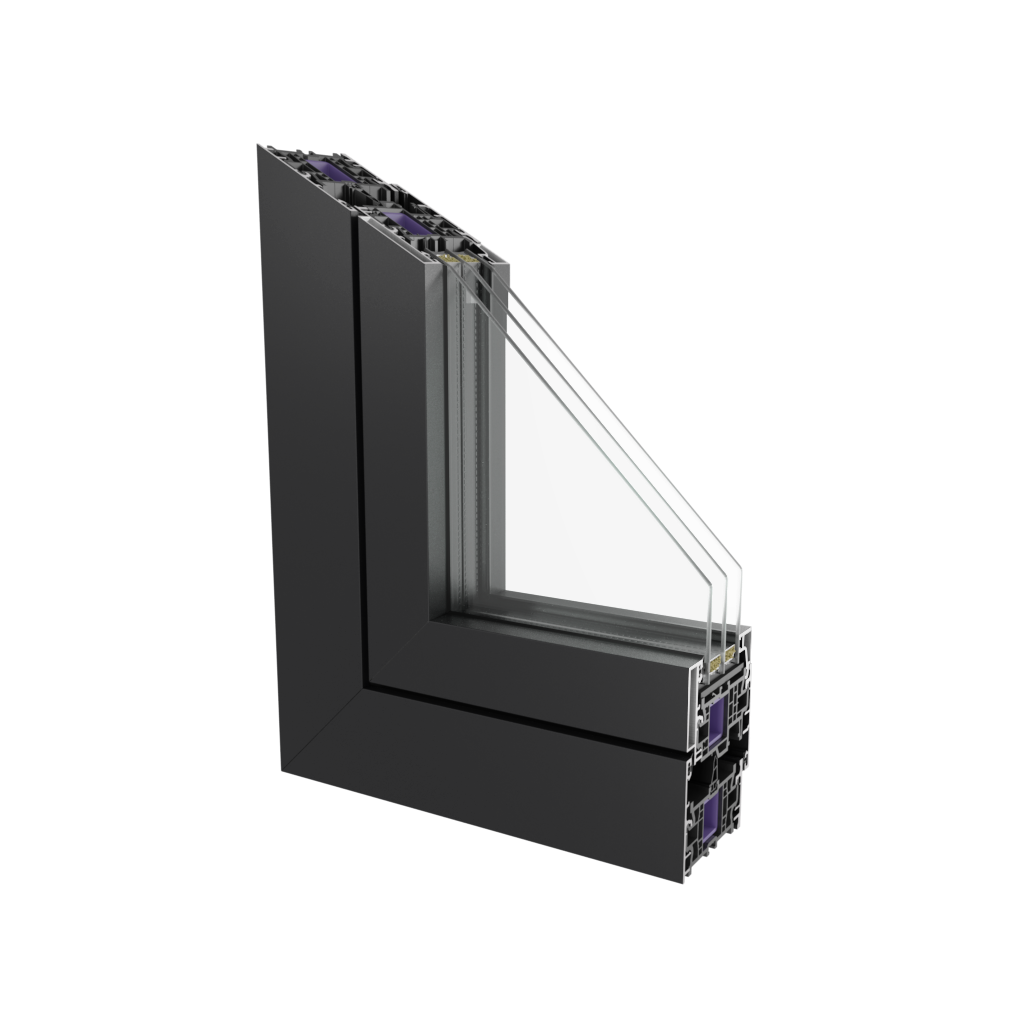

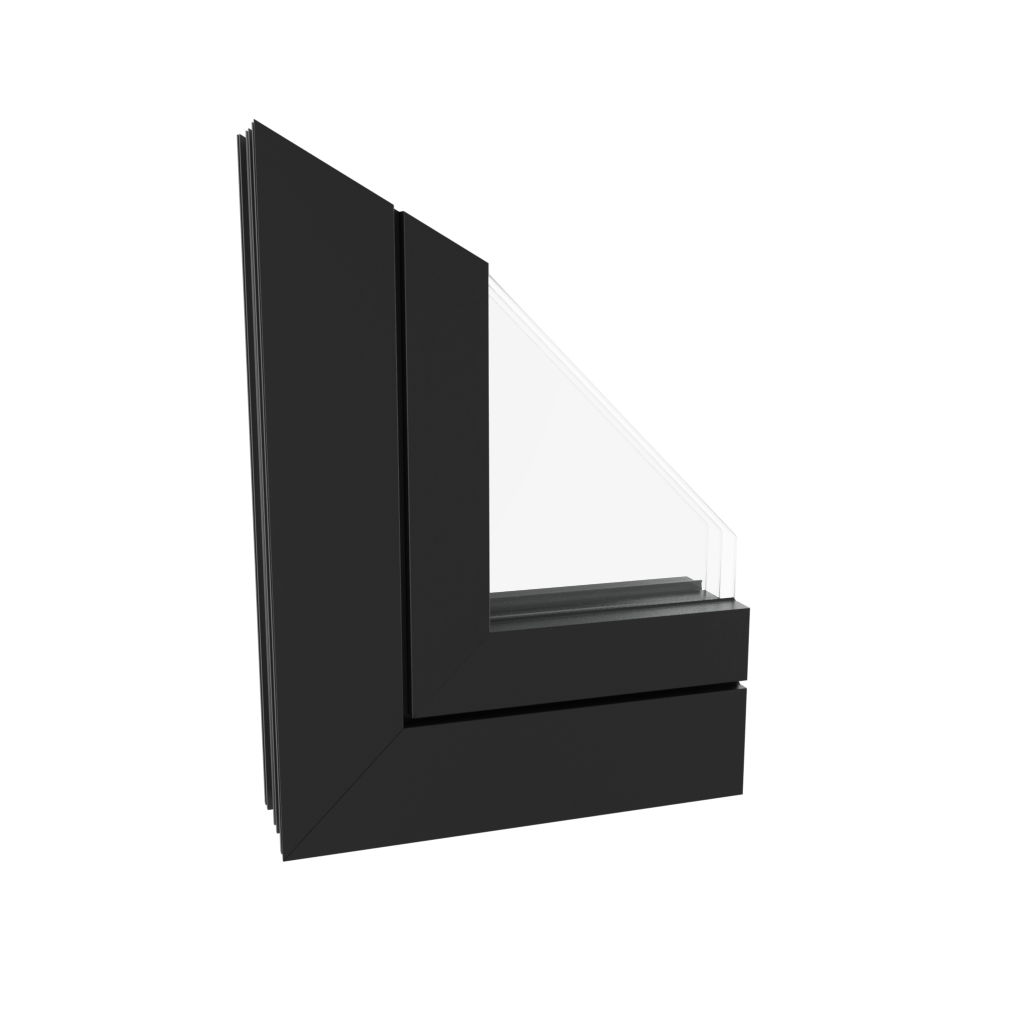

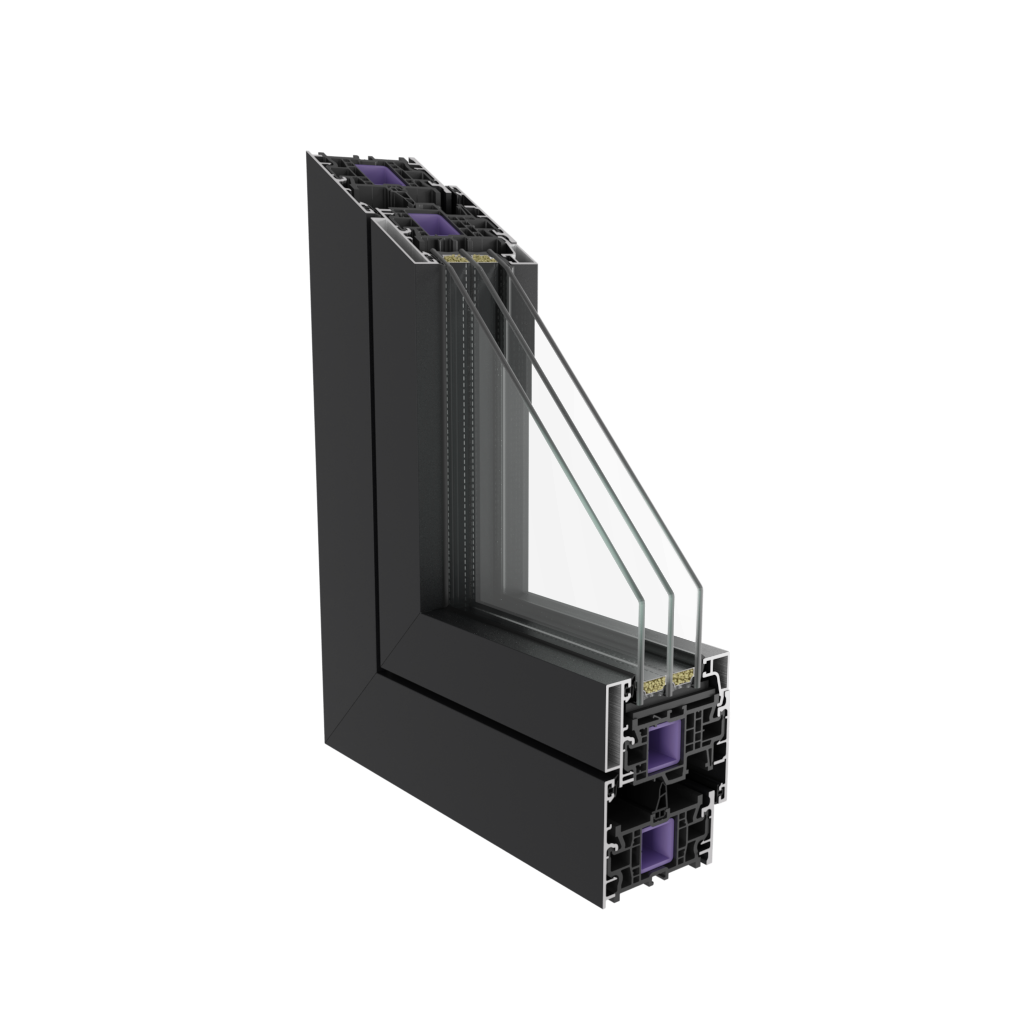

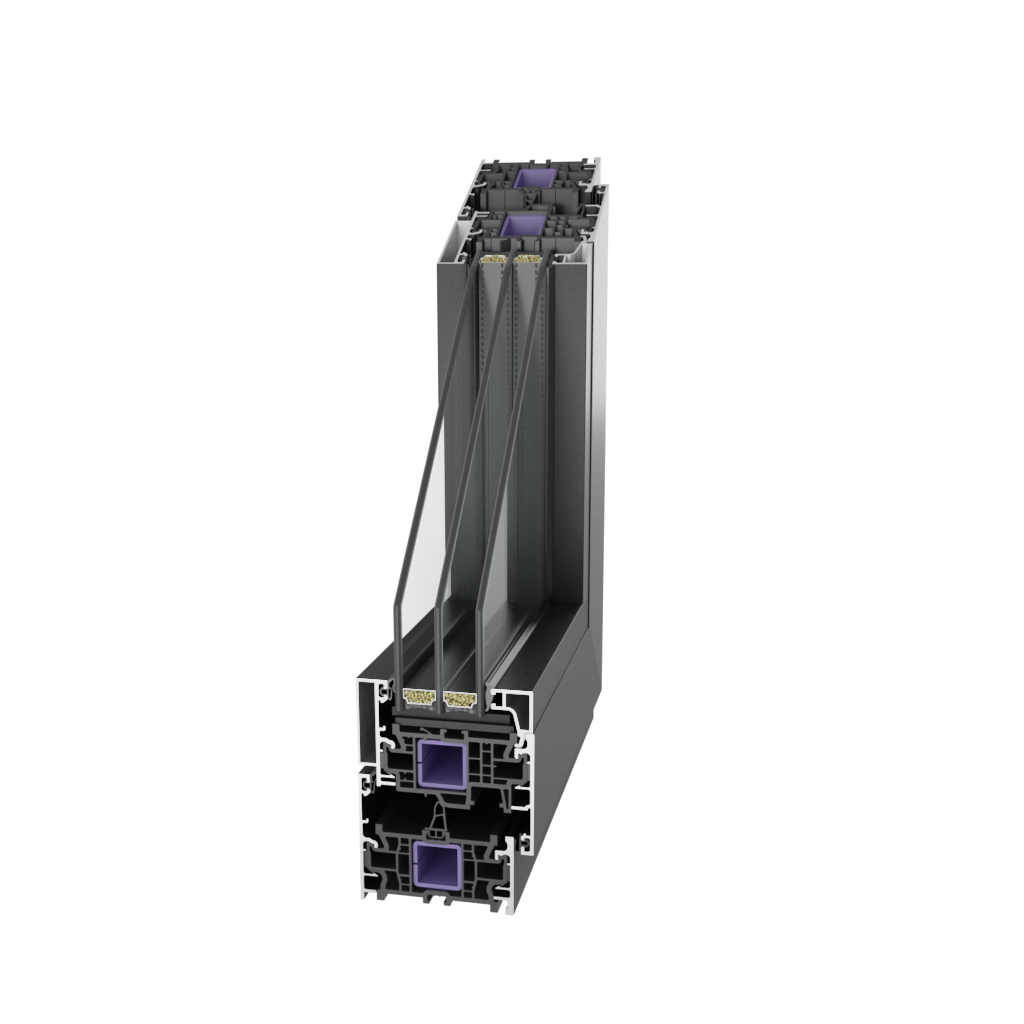

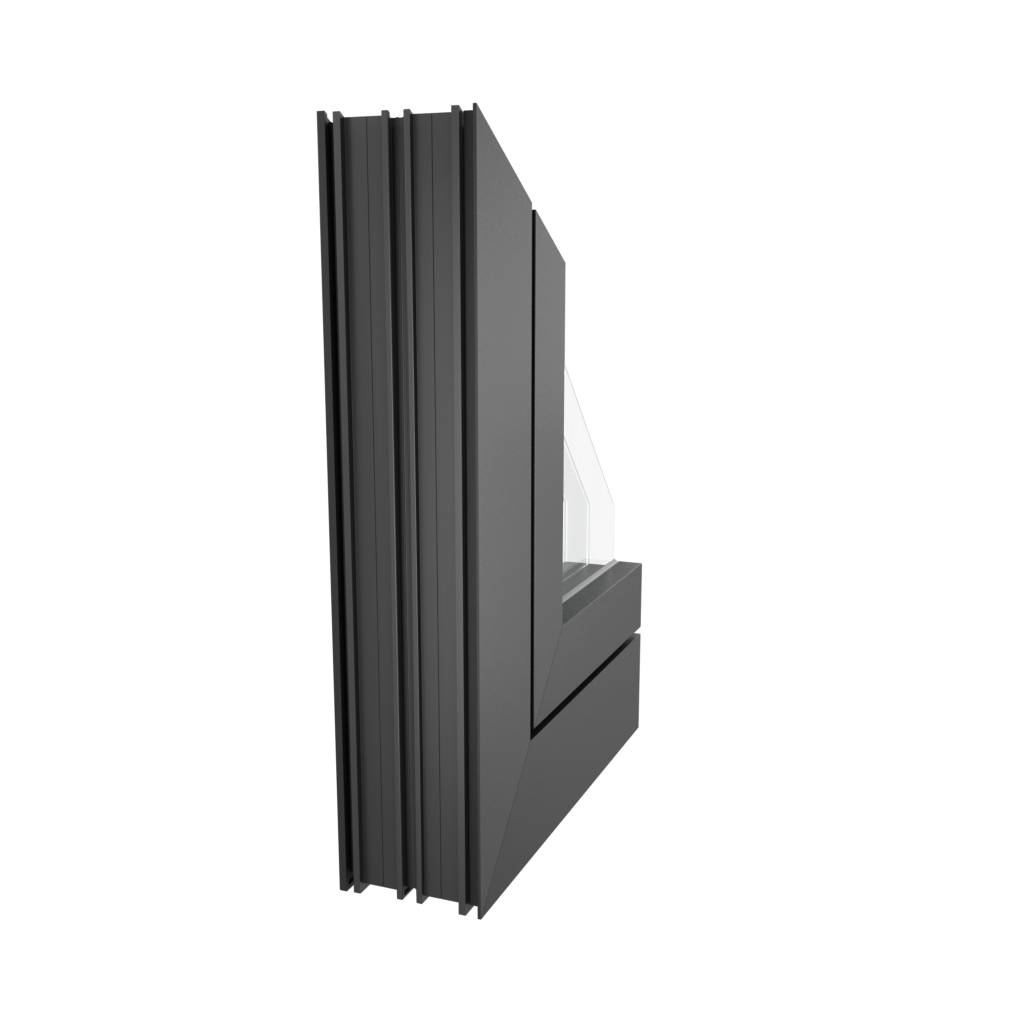

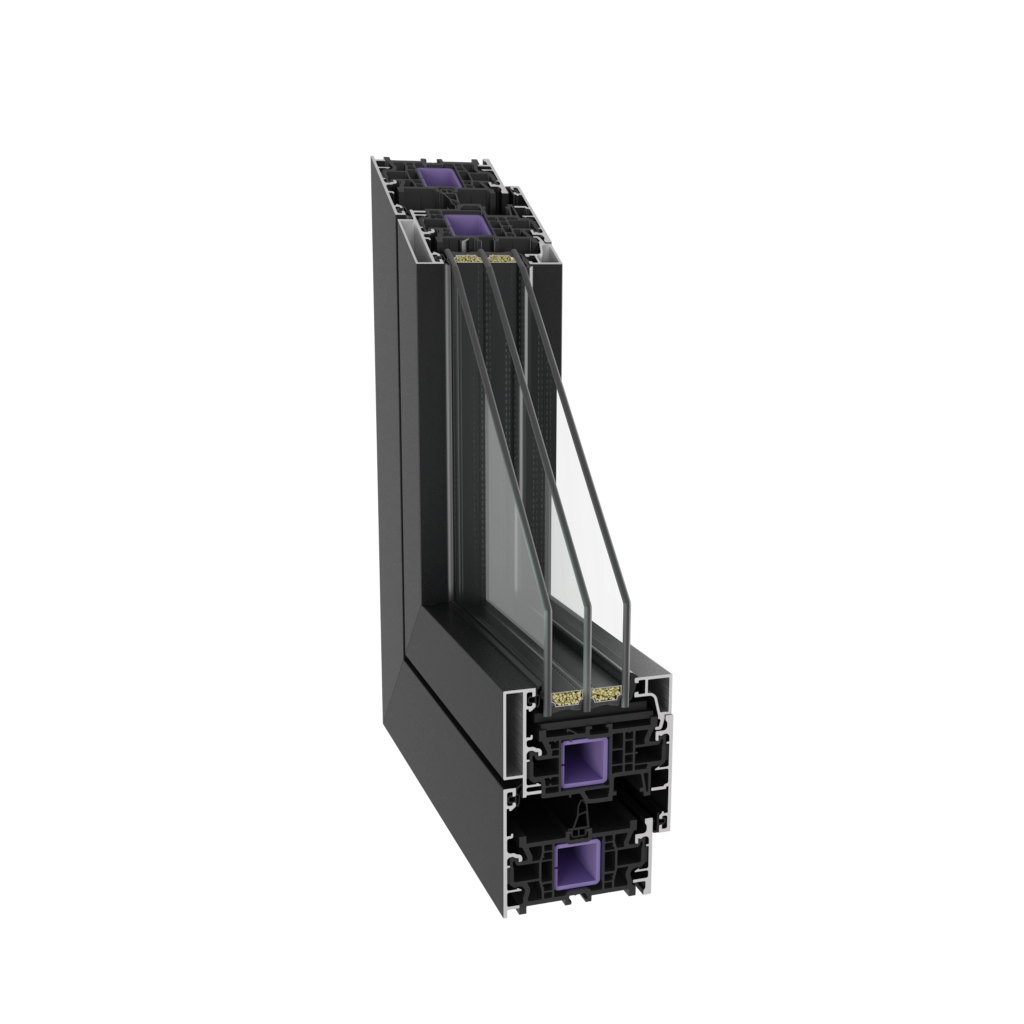

H8 AluPassive HI+/SI+
what ishybrid windows
H8 AluPassive HI+/SI+
Technical Specifics
Profile type
PVC, 5–7 chambers, installation depth 76 mm
Profile class
Class A
Reinforcement
Galvanized steel 1.5–2 mm
Glazing type
Double-chamber (3 panes), ultra-high thermal insulation
Glazing thickness
48 mm
Gas filling
Argon
Thermal conductivity coefficient (Uf)
From 0.9 to 1.2 W/m²K
Heat transfer coefficient (Uw)
Up to 0.78 W/m²K
Sound insulation
Up to 44 dB, ultra-high sound insulation
Fittings
German (Winkhaus)
Fittings functions
Anti-burglary, opening limiter, child lock
Warranty
5 years
Additional options
Blinds inside the glazing, compatible with "smart home"
durability
Alluminium
50 years
Hybrid
35 years
PVC
10-20 years
If your budget is not limited, then, from the point of view of durability, choosing aluminum structures is the best solution. If you aim to rationally invest funds in durable solutions, then the choice of hybrid windows is obvious. Plastic windows are not a rational choice in terms of durability.
comfort
High thermal insulation
HI +
High sound insulation
SI +
Blinds integrated in glass Manual/electric (options)
Comfort life
Hybrid windows provide the highest indoor comfort. The third sealing circuit provides high protection against blowing/water penetration in strong gusts of wind and rain. Among aluminum structures, comfort of this level is provided only by profile systems of the highest class, HI+ level. Cheaper aluminum structures disappoint buyers with uncomfortable feelings in the area of aluminum profiles (cold in winter, hot in summer).
efficiency
High thermal insulation
HI +
Thermal efficiency profile system with 3 gasket
Uf = 1,1
Passive Glass
Ug = 0,7
Triple glassing 48mm at standard
Thanks to the thermal insulation performance (thermal conductivity of the profile Uf=1.1), they provide the highest cost savings in heating and air conditioning of premises.
mechanical safety
Aluminum profile
outside
Metal protection against external influences
Glued insulated glass unit
Passive Glass
Anti-burglary fittings system
wh activ
Anti-burglary window hoppe handle
secustik
value & price
According to the statements of the most authoritative architects, the use of natural materials such as aluminum provides a prestigious look to the houses, which accordingly significantly increases the market value of the house in general. In the budget of the house, the difference between the cost of windows of different classes is only a few %. Therefore, hybrid windows are the most profitable investment in terms of ratio.
certificates and warranty
Components have certificates
ce
Production quality management system
pqm
Logistics quality management system
pqm
