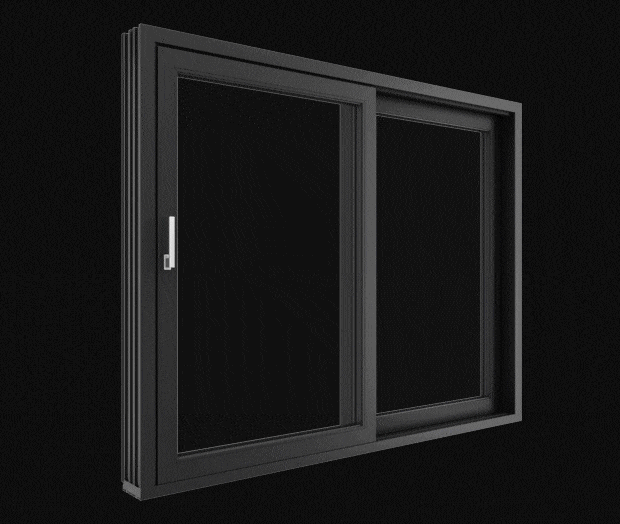

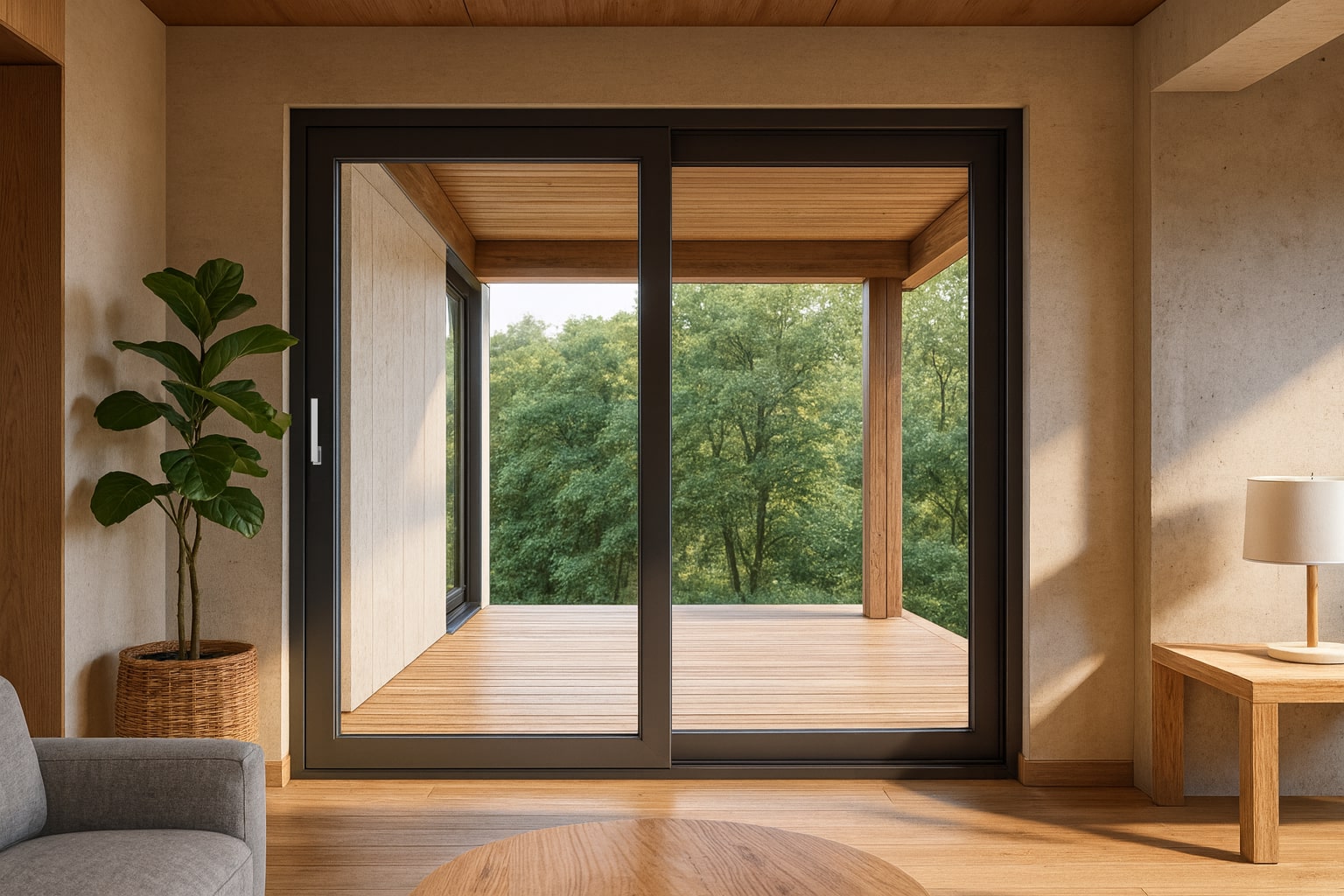

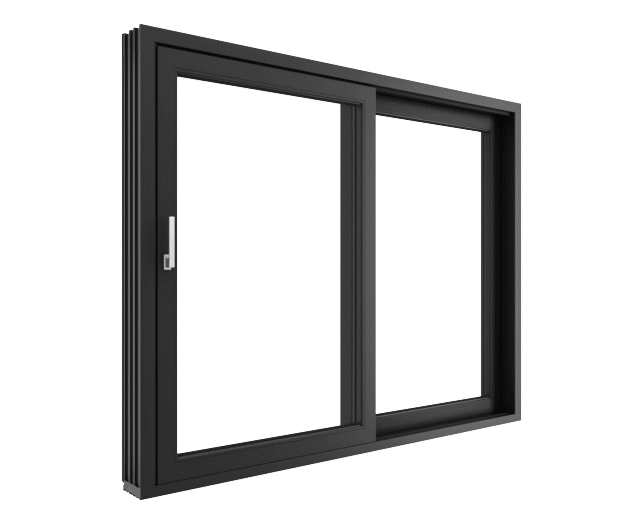

AluPatio — an innovative sliding system from HYBRID WINDOWS that combines the aesthetics and durability of aluminum with the energy efficiency of PVC.
Thanks to RAL color customization, you get perfect color harmony between AluPatio and other aluminum systems – for an impeccable architectural style.
Main advantage — impressive dimensions: 2600 × 6500 mm, opening new possibilities for space and light.
It is a warmer, more economical, and visually superior solution than PVC and aluminum systems.
Technical Specifics
Profile type
PVC, 5–7 chambers, installation depth 70–82 mm
Profile class
Class A
Reinforcement
Galvanized steel 1.5–2 mm
Glazing type
Double-chamber (3 panes), energy-saving Low-E
Glazing thickness
24–44 mm
Gas filling
Argon
Thermal conductivity coefficient (Uf)
1.4 W/m²K
Heat transfer coefficient (Uw)
Up to 0.78 W/m²K
Sound insulation
Up to 44 dB
Fittings
German (Winkhaus)
Fittings functions
Anti-burglary, opening limiter, child lock
Warranty
5 years
value & price
certificates and warranty
Components have certificates
ce
Production quality management system
pqm
Logistics quality management system
pqm
